圆锥破碎机 CC-200固定式次级矿物材料
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 圆锥
- 可移动性
- 固定式
- 其他特性
- 矿物材料, 次级, 石头
- 容量
最少: 32 t/h
(19.6 lb/s)最多: 220 t/h
(134.7 lb/s)- 发动机功率
132 kW
(179.47 hp)- 重量
10,516 kg
(23,183.81 lb)
产品介绍
产品概述

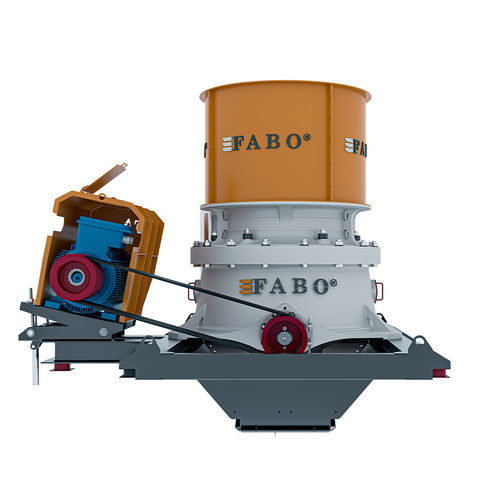

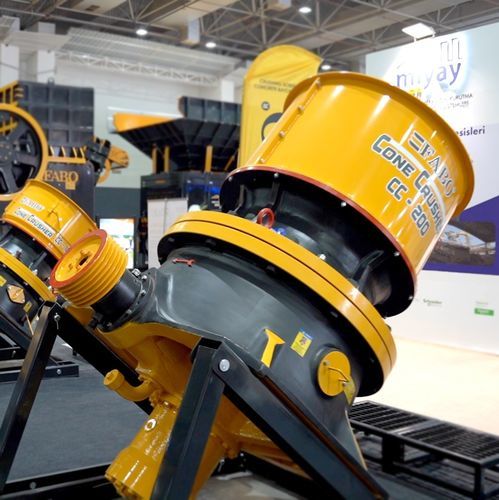

CC-200 圆锥破碎机为二级破碎设备，适用于花岗岩、玄武岩、安山岩等坚硬且有磨蚀性的岩石。配备 132 kW 电机，根据所选破碎腔可处理最大 185 mm 的进料，额定重量为 10,516 kg。设备采用耐磨寿命长的易损件，且维护便捷，从而降低备件消耗和运行停机时间。
主要结构件
技术参数（公制）
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (mm) | 185 | 145 | 115 | 90 | 75 | 50 | 38
Motor Power | 132 kW
Weight | 10516 kg
Nominal capacity in tph (mm) with crusher operating in CSS (columns correspond to feed sizes: 4, 5, 6, 8, 10, 13, 16, 19, 22, 25, 29, 32, 35 (x2 cols merged), 38, 41):
Feed sizes (mm) | 4 | 5 | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41
EC | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -
技术参数（英制）
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (inch) | 7'' | 6'' | 4'' | 3'' | 3'' | 2'' | 1''
Motor Power | 177 hp
Weight | 23.181 lb
Nominal capacity in tph (inch) with crusher operating in CSS (columns correspond to feed sizes: 0.1'', 0.2'', 0.2'', 0.3'', 0.4'', 0.5'', 0.6'', 0.7'', 0.8'', 0.9'', 1.1'', 1.2'', 1.3'' (x2 cols merged), 1.4'', 1.6''):
Feed sizes (inch) | 0.1'' | 0.2'' | 0.2'' | 0.3'' | 0.4'' | 0.5'' | 0.6'' | 0.7'' | 0.8'' | 0.9'' | 1.1'' | 1.2'' | 1.3'' | 1.4'' | 1.6''
EC | - | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -
特性 / 技术规格
CC-200 圆锥破碎机为二级破碎设备，适用于花岗岩、玄武岩、安山岩等坚硬且有磨蚀性的岩石。配备 132 kW 电机，根据所选破碎腔可处理最大 185 mm 的进料，额定重量为 10,516 kg。设备采用耐磨寿命长的易损件，且维护便捷，从而降低备件消耗和运行停机时间。
主要结构件
- 机体（下部和上部）
- 调节环和给料板
- 心轴与主轴
- 偏心套与锥齿轮
- 传动组件
- 破碎衬板与心轴衬块
- 破碎物排出槽
- 调节机构
- 润滑系统
技术参数（公制）
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (mm) | 185 | 145 | 115 | 90 | 75 | 50 | 38
Motor Power | 132 kW
Weight | 10516 kg
Nominal capacity in tph (mm) with crusher operating in CSS (columns correspond to feed sizes: 4, 5, 6, 8, 10, 13, 16, 19, 22, 25, 29, 32, 35 (x2 cols merged), 38, 41):
Feed sizes (mm) | 4 | 5 | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41
EC | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -
技术参数（英制）
Crushing Chamber | EC | C | MC | M | MF | F | EF
Maximum Feed (inch) | 7'' | 6'' | 4'' | 3'' | 3'' | 2'' | 1''
Motor Power | 177 hp
Weight | 23.181 lb
Nominal capacity in tph (inch) with crusher operating in CSS (columns correspond to feed sizes: 0.1'', 0.2'', 0.2'', 0.3'', 0.4'', 0.5'', 0.6'', 0.7'', 0.8'', 0.9'', 1.1'', 1.2'', 1.3'' (x2 cols merged), 1.4'', 1.6''):
Feed sizes (inch) | 0.1'' | 0.2'' | 0.2'' | 0.3'' | 0.4'' | 0.5'' | 0.6'' | 0.7'' | 0.8'' | 0.9'' | 1.1'' | 1.2'' | 1.3'' | 1.4'' | 1.6''
EC | - | - | - | - | - | - | 66-119 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-220 | 109-218 | 114-157
C | - | - | - | - | - | - | 60 | 66-140 | 71-151 | 76-162 | 81-173 | 86-184 | 93-198 | 98-209 | 104-207 | 109-150 | 114
MC | - | - | - | - | - | - | 57-79 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 88-160 | 93-145 | 98-116 | - | -
M | - | - | - | - | - | 48-56 | 50-113 | 55-123 | 59-133 | 63-143 | 68-152 | 72-144 | 78-122 | 82-97 | - | - | -
MF | - | - | - | - | 42-49 | 44-100 | 47-106 | 51-115 | 55-124 | 59-126 | 63-114 | 67-92 | - | - | - | - | -
F | 32-47 | 34-71 | 35-78 | 37-83 | 39-88 | 43-96 | 46-92 | 49-77 | 53-63 | - | - | - | - | - | -
EF | - | 38-60 | 40-89 | 42-95 | 45-101 | 49-109 | 52-105 | 56-105 | 60-71 | - | - | - | - | - | -
特性 / 技术规格
- 型号: CC-200
- 类型: 圆锥破碎机（二次破碎）
- 电机功率: 132 kW (177 hp)
- 最大进料（公制）: 根据破碎腔不同可达 185 mm
- 最大进料（英制）: 根据破碎腔不同可达 7"
- 重量: 10,516 kg (23,181 lb)
- 额定产能: 详见上述按破碎腔类型（EC, C, MC, M, MF, F, EF）及进料尺寸划分的产能范围
- 适用于花岗岩、玄武岩、安山岩等硬质、磨蚀性材料
- 采用长寿命耐磨件，降低备件消耗
- 维护与检修便捷，降低运行成本
- 主要结构件: 机体、调节环和给料板、心轴与主轴、偏心套与锥齿轮、传动组件、破碎衬板与心轴衬块、排出槽、调节机构、润滑系统
