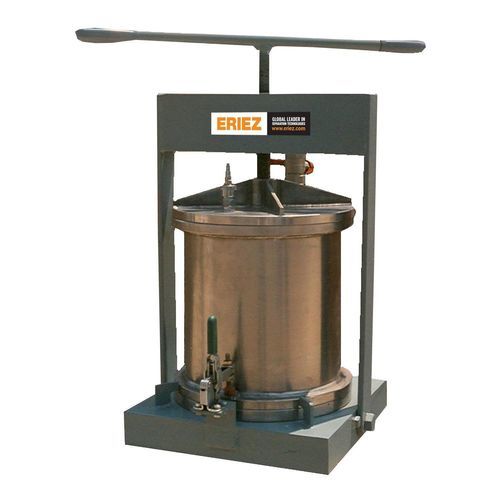

框式压滤机 MACSALAB

手动操控式实验室用用于泥浆

概述
MACSALAB 过滤压榨机在采矿和冶金实验室中广泛用于浆体脱水及固液分离。操作时，将样品置于容器内，夹紧盖子并施加约 600 kPa 的压缩空气。

结构
该系列压榨机由制造的软钢底座和摆动叉形夹组成，标准配置为 304 级不锈钢容器。可按特殊订单提供 316 级不锈钢容器。标配快速释放气体接头和注液/释压阀。液体通过容器底部的排放喷嘴排出，固体留在容器内。

可选配置

• 单台或多台过滤压榨机的支架，可带或不带管路。
• 蜗轮蜗杆驱动的旋转支架，便于排放。
• 后倾式旋转支架（仅适用于较小型号）。

可用尺寸与容量
80 mm ∅ x 200 mm — 1.0 L
100 mm ∅ x 310 mm — 2.4 L
150 mm ∅ x 310 mm — 5.5 L
200 mm ∅ x 310 mm — 9.7 L
250 mm ∅ x 310 mm — 15.2 L
300 mm ∅ x 310 mm — 21.9 L

产品清单
Filter Press 100mm DIA x 310mm S/S - L02.001 - 2.4 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).
Filter Press 150mm DIA x 310mm S/S - L02.002 - 5.5 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).
Filter Press 200mm DIA x 310mm S/S - L02.003 - 9.7 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).
Filter Press 250mm DIA x 310mm S/S - L02.004 - 15.2 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).
Filter Press 300mm DIA x 310mm S/S - L02.005 - 21.9 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).
Filter Press 80mm DIA x 200mm S/S - L02.006 - 1.0 Liter MACSALAB Grade 304 stainless steel Filter Press complete with a ball valve for washing & venting, quick-release non-return compressed air coupling & mild steel base with swing yoke clamp. Cloth included. Working pressure 6.9 Bar (100 psi).

技术规格

• 容器标准材质：304 级不锈钢。
• 可选容器材质：316 级不锈钢（特殊订单）。
• 制造的软钢底座和摆动叉形夹。
• 标配快速释放气体接头。
• 含注液/释压阀。
• 含洗涤与通风用球阀（按型号）。
• 标配防回流压缩空气接头。
• 每台压榨机均附带滤布。
• 液体通过底部喷嘴排出；固体保留在容器内。
• 型号标称工作压力：6.9 Bar（100 psi）；运行用压缩空气约为 600 kPa。
• 可用尺寸/容量：80 mm ∅ x 200 mm（1.0 L）；100 mm ∅ x 310 mm（2.4 L）；150 mm ∅ x 310 mm（5.5 L）；200 mm ∅ x 310 mm（9.7 L）；250 mm ∅ x 310 mm（15.2 L）；300 mm ∅ x 310 mm（21.9 L）。
