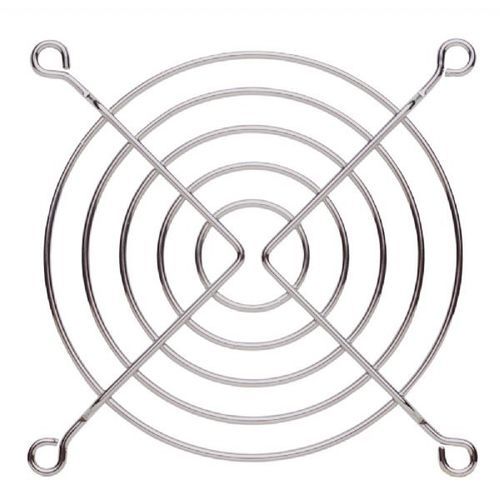

金属通风网格 EMG series网眼
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 材料
- 金属
- 其他特性
- 网眼
产品介绍
概述
用于工业和电子散热的标准金属线成型风扇防护罩。兼容多种 EA/EC/ED 系列风扇，并提供多种 EMG 型号以匹配 25 mm 至 280 mm 的风扇直径。
规格
Spec. - 风扇尺寸 (mm / in) - 对应 EA 风扇系列 - 金属风扇防护罩型号
25 mm / 1.0 in - ED25XX Series - EMG25-2U
40 mm / 1.57 in - ED40XX Series - EMG30-2
45 mm / 1.77 in - ED45XX Series - EMG40-2
50 mm / 2.05 in - ED50XX Series - EMG50-3
60 mm / 2.36 in - EA60XX Series; ED60XX Series - EMG60-4
70 mm / 2.37 in - ED70XX Series - EMG70-5A
80 mm / 3.15 in - EA80XX Series; EC80XX Series; ED80XX Series - EMG80-18
92 mm / 3.62 in - EA92XX Series; EC92XX Series; ED92XX Series - EMG92-16
120 mm / 4.7 in - EA12XX Series; EC12XX Series; ED12XX Series - EMG109-15A; EMG109-17
127 mm / 5.0 in - EA1338 Series; ED1338 Series - EMG127-9
172 mm / 6.7 in - EA15XX / EA17XX Series; ED15XX / ED17XX Series - EMG172-10H; EMG172-10HA
225 mm / 8.85 in - EA2280 Series - EMG225-12U
254 mm / 10.0 in - EA25XX Series; ED2589 Series - EMG254-9D
280 mm / 11.0 in - EA2880 Series - EMG280-17U
可用防护型号
特性 / 技术规格
用于工业和电子散热的标准金属线成型风扇防护罩。兼容多种 EA/EC/ED 系列风扇，并提供多种 EMG 型号以匹配 25 mm 至 280 mm 的风扇直径。
规格
Spec. - 风扇尺寸 (mm / in) - 对应 EA 风扇系列 - 金属风扇防护罩型号
25 mm / 1.0 in - ED25XX Series - EMG25-2U
40 mm / 1.57 in - ED40XX Series - EMG30-2
45 mm / 1.77 in - ED45XX Series - EMG40-2
50 mm / 2.05 in - ED50XX Series - EMG50-3
60 mm / 2.36 in - EA60XX Series; ED60XX Series - EMG60-4
70 mm / 2.37 in - ED70XX Series - EMG70-5A
80 mm / 3.15 in - EA80XX Series; EC80XX Series; ED80XX Series - EMG80-18
92 mm / 3.62 in - EA92XX Series; EC92XX Series; ED92XX Series - EMG92-16
120 mm / 4.7 in - EA12XX Series; EC12XX Series; ED12XX Series - EMG109-15A; EMG109-17
127 mm / 5.0 in - EA1338 Series; ED1338 Series - EMG127-9
172 mm / 6.7 in - EA15XX / EA17XX Series; ED15XX / ED17XX Series - EMG172-10H; EMG172-10HA
225 mm / 8.85 in - EA2280 Series - EMG225-12U
254 mm / 10.0 in - EA25XX Series; ED2589 Series - EMG254-9D
280 mm / 11.0 in - EA2880 Series - EMG280-17U
可用防护型号
- EMG25-2U
- EMG30-2
- EMG40-2
- EMG50-3
- EMG60-4
- EMG70-5A
- EMG80-18
- EMG92-16
- EMG109-15A
- EMG109-17
- EMG127-9
- EMG172-10H
- EMG172-10HA
- EMG225-12U
- EMG254-9D
- EMG280-17U
特性 / 技术规格
- 产品名称：金属风扇防护罩
- 品牌：Electronic Associates (Taiwan) Ltd.
- 类型：标准线成型风扇防护罩
- 材料：金属（线成型）
- 兼容风扇尺寸：25 mm 至 280 mm（完整列表见规格表）
- 匹配的风扇系列：EA 系列、EC 系列、ED 系列（按尺寸区分）
- 可用型号编号：EMG25-2U、EMG30-2、EMG40-2、EMG50-3、EMG60-4、EMG70-5A、EMG80-18、EMG92-16、EMG109-15A、EMG109-17、EMG127-9、EMG172-10H、EMG172-10HA、EMG225-12U、EMG254-9D、EMG280-17U
- 文档：每个型号的产品数据表可用 (EMG25-2U.pdf, EMG30-2.pdf, EMG40-2.pdf, EMG50-3.pdf, EMG60-4.pdf, EMG80-18.pdf, EMG92-16.pdf, EMG109-15A.pdf, EMG109-17.pdf, EMG127-9.pdf, EMG172-10H.pdf, EMG172-10HA.pdf, EMG225-12U.pdf, EMG254-9D.pdf, EMG280-17U.pdf)
