飞行时间激光器测距传感器 Dilas FT1800
Profibus用于严苛环境紧凑型

飞行时间激光器测距传感器
飞行时间激光器测距传感器
飞行时间激光器测距传感器
飞行时间激光器测距传感器
飞行时间激光器测距传感器
添加到我的收藏夹
添加到产品对比表


产品规格型号

所用技术
飞行时间激光器
输出
Profibus
保护程度
用于严苛环境
其他特性
紧凑型, 坚固, 非接触式, 高精度, 大范围, 高敏型, 用于自动化
距离

最少: 0 m
(0'00" )

最多: 50 m
(164'00" )

产品介绍

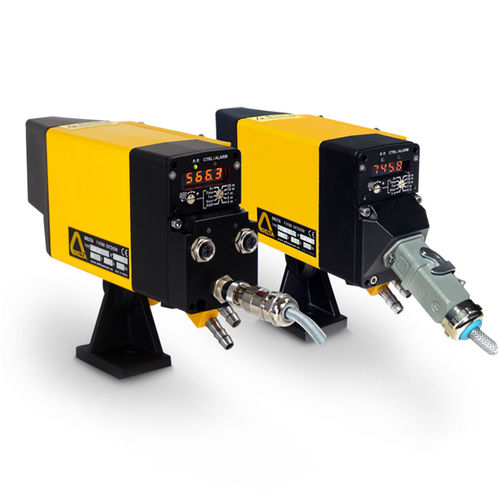

- Digital communication: Profibus-DP, Profinet, Ethernet Modbus TCP, EtherNet/IP - High temperature targets - Long range - High accuracy - Easy setup and installation - Design for difficult conditions The Dilas FT1800 is a digital, high resolution, non-contact laser distance measurement or detection sensor. The target may be hot or cold, stationary or moving. Dilas FT1800 measures on all non-shiny surfaces. The operation of the Dilas FT1800 is based on time-of-flight measurement. The sensor calculates the distance of the target surface using the time of flight of visible laser light pulses. Presentation : The Dilas FT1800 is an autonomous sensor mounted in compact aluminium housing, IP66. The sensor can be ordered with mounting bracket or mounting stand and water-cooling jacket. A digital display indicates the measured distance and two LED indicate status of sensor. For the models with digital communication, two additional LED indicate the communication link status. The sensor can work as a standalone unit: in that case, the setup is made from the control panel at the back of sensor.

PDF产品目录
