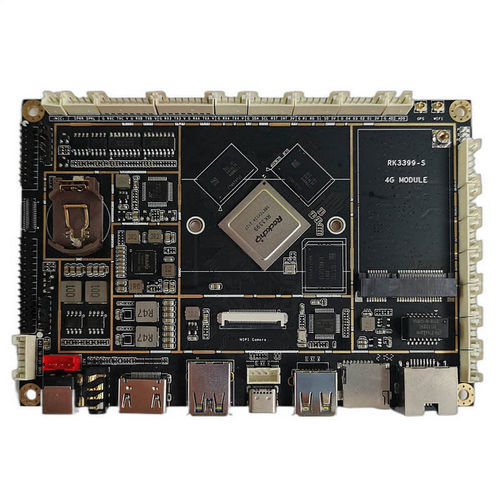

嵌入式主板 SMT-5

Rockchip RK3399 SoCRockchip RK3188Rockchip RK3588

产品介绍
我们提供从原型到大批量生产的端到端PCBA服务。
提供一站式PCBA设计与制造服务，包括定制PCB设计、元件采购、精密SMT贴片和全面检测，为广告显示屏及消费电子提供交钥匙电子解决方案。支持试制与可扩展的大批量生产，采用认证流程以降低供应链风险并加速上市。

产品参数
关键属性
Base Material: glass fibre
Board Thickness: 0.6~3.0mm
Model Number: SMT-5
Place of Origin: Guangdong, China
Brand: ASK
Copper Thickness: 1-5 oz
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm
Functional Application: General Purpose / consumer electronics
Material: FR-4
Type: PCB Board (Customize SMT Assembly)
Surface Finishing: Lead-sprayed tin / Lead-free tin / customize
Board Size: 5x5mm to 500x600mm
Product name: Customize SMT Assembly
Service: One-stop Service
Application: consumer electronics
Surface Finishing (additional): Gold Finger, Immersion Silver, Immersion Tin
Solder mask color: Green, yellow, blue, black, white
PCB Standard: IPC-A-610 D / IPC-III Standard
Keyword: SMT Assembly
MOQ: 5 Piece
Test: 100% Electrical
Certificate: SO / ROHS / CE / CQC / ATF16949

包装与交付
销售单位：单件
交期（数量／天数）：1 - 1000 => 3天；1001 - 10000 => 7天；> 10000 => 面议

附加产品图片与细节照片
提供画廊展示板子布局、装配示例和PCB细节图片，便于技术评估与集成。

特性 / 技术规格

• Base Material: glass fibre
• Board Thickness: 0.6~3.0mm
• Model Number: SMT-5
• Place of Origin: Guangdong, China
• Brand: ASK
• Copper Thickness: 1-5 oz
• Minimum Hole Size: 0.2mm
• Minimum Line Width: 0.1mm
• Minimum Line Spacing: 0.1mm
• Functional Application: General Purpose / consumer electronics
• Material: FR-4
• Type: PCB Board (Customize SMT Assembly)
• Surface Finishing Options: Lead-sprayed tin, Lead-free tin, Gold Finger, Immersion Silver, Immersion Tin
• Board Size Range: 5x5mm to 500x600mm
• Solder Mask Colors: Green, yellow, blue, black, white
• Standards & Tests: IPC-A-610 D / IPC-III, 100% Electrical testing
• Certificates: SO, ROHS, CE, CQC, ATF16949
• MOQ: 5 Piece
• Service: 一站式全套PCBA解决方案（设计、采购、装配、测试）
• Lead times: 1-1000 pcs: 3天；1001-10000 pcs: 7天；>10000 pcs: 面议
