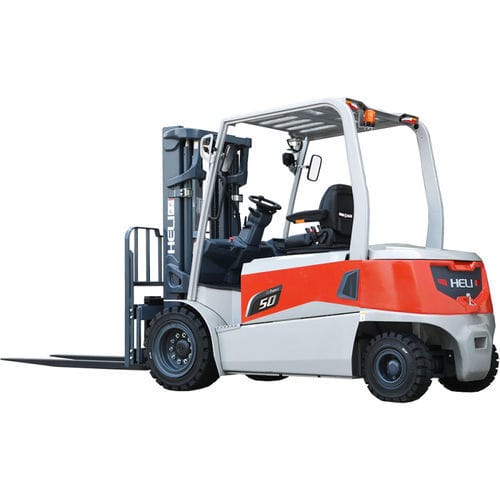

电动叉车 CPD40
坐驾式搬运4轮

电动叉车
电动叉车
电动叉车
电动叉车
电动叉车
添加到我的收藏夹
添加到产品对比表


产品规格型号

机动形式
电动
操作方式
坐驾式
应用
搬运
其他特性
4轮, 平衡重式
载荷

4,000 kg, 4,500 kg, 5,000 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb)

提升高度

3,000 mm
(118.11 in)

整体宽度

1,350 mm, 1,500 mm
(53.1 in, 59.1 in)

整体长度

2,920 mm
(115 in)

距重心距离

500 mm
(19.7 in)

高度垫降低

2,230 mm, 2,240 mm
(87.8 in, 88.2 in)

标准自由升降

150 mm
(5.9 in)

总体高度垫底

4,225 mm, 4,235 mm
(166.3 in, 166.7 in)

到驾驶员护栏顶部高度

2,270 mm, 2,275 mm
(89.4 in, 89.6 in)

转弯半径

2,580 mm
(101.6 in)

产品介绍

●Comfortable: Low access steps. Large, level foot well with automotive pedal lay-out. Floating cab module cushions road shocks and vibrations. Clear view: mast and fork carriage allow for excellent visibility of the load. Hydraulic power steering is precise, requiring the minimal amount of effort without kick-back. Comfort Display provides up-to-date information on vital vehicle conditions at a glance. ● Safe, wear-free braking: Regenerative electric braking and regular brake pedal use. Multiple oil disk brakes act as a safety back-up. Wear-free and fully enclosed. ● Safety: Curve Control automatically reduces travel speed when cornering. Very low centre of gravity improves stability and residual capacity. Electronic and hydraulic overload protection guard. ● Maintenance free electric motors: Proven AC technonlgy:2 drive motors, hydraulic pump motor, steering motor. High performance, low energy consumption, less maintenance. High torque for rapid work cycle. Up to 15% higher energy efficiency than shunt motors. No brushes, no collector-no maintenance expense. Fully enclosed and protected to IP 54. Long life, even under dusty and damp conditions.
* 显示价格为参考价,此价格不含税、不含运费、不含关税,也不包含因安装或投入使用所产生的其他额外费用。参考价格可能因国家、原材料价格和汇率的不同而产生变化。
