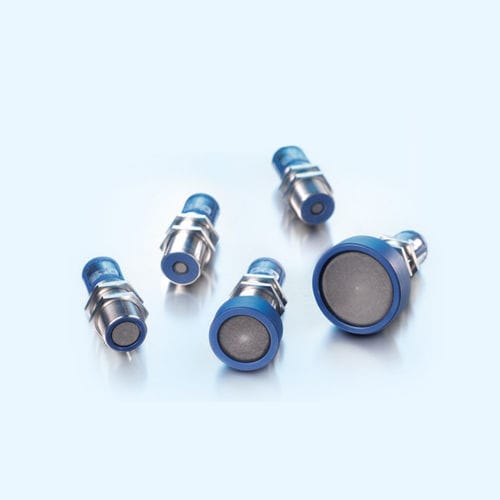

Sensor membrane with wear-resistant protective film
In many filling processes, spray on the sensor membrane simply cannot be avoided. These sprays often harden so that after longer periods of operation contamination can only be removed from the sensor membrane by mechanical means. The new protective film of the crm+ sensors now makes it easy to remove caked-on soiling, such as hardened casting compound and cement spatter.
主要特点
超声波换能器覆盖 PEEK保护膜 便于清理并有很高的抗腐蚀性
不锈钢外壳
测量值直接以mm/cm 或 %的方式通过LED显示出来
可通过数字显示器预设数值的传感器 实现传感器的预设
自动同步和异步工作 最多可实现10个传感器的同步工作
基本特点
1 个或2个pnp开关量输出
模拟量输出4–20mA和0–10V 电流和电压输出可自动切换
检测距离从 30 mm 到 8 m,存在5种检测量程
可以使用T1或T2按钮来进行microsonic的示教
0.025 mm ~2.4 mm 的分辨率
温度补偿
工作电压 9–30 V
连接控制 可以通过连接电脑来配置传感器参数
